wind and water and earth
dinsdag 29 januari 2013Single Sided Hub center steering
Single Sided Hub center steering,for the streamlined electric motorcycle.
As a design excercise I have been looking at a single sided version of the hub center steering. It took me quite some hours to figure it out, make the design and do the renderings, but it is done!
There is a youtube movie of the design,
a take apart animation so you can see how I solved the problem.

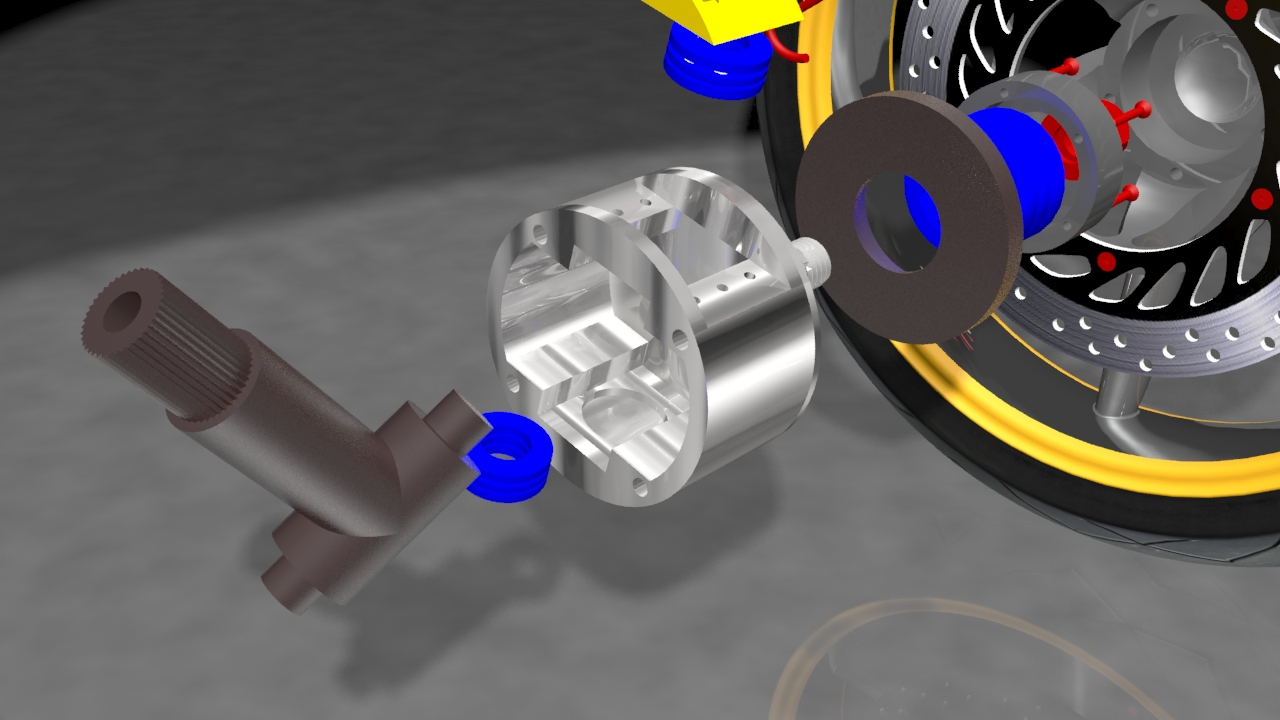

It is now possible to easily take off the front wheel, the double roller bearing is much smaller and consequently lighter than the two sided design.
There is more rotational space on the left side of the hub as the brake disk could me moved more inward.

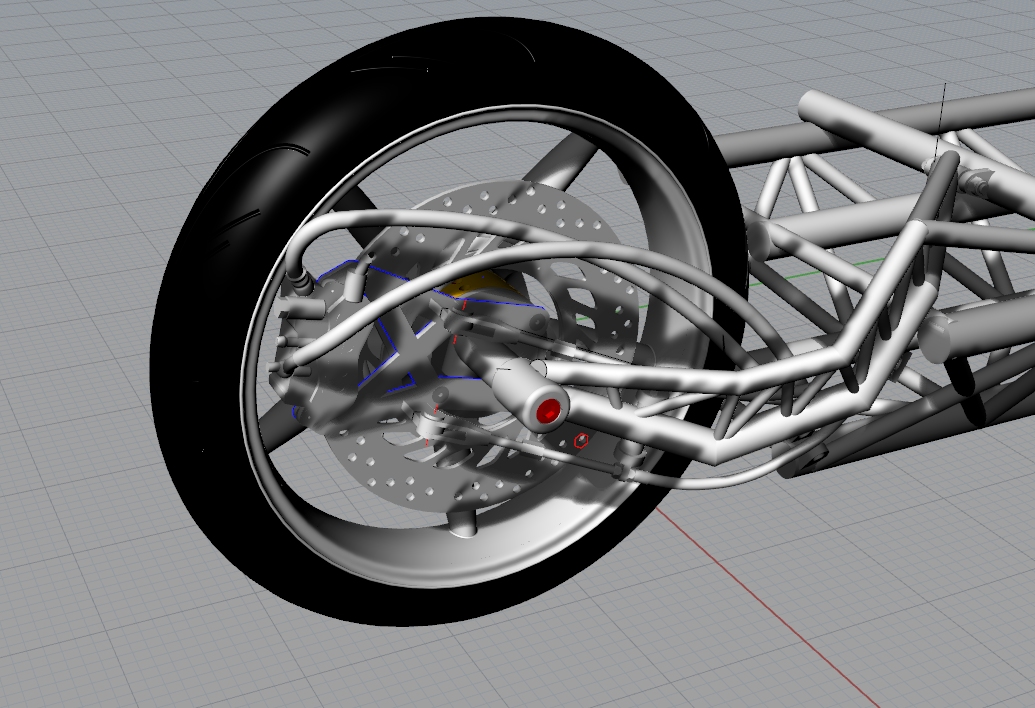

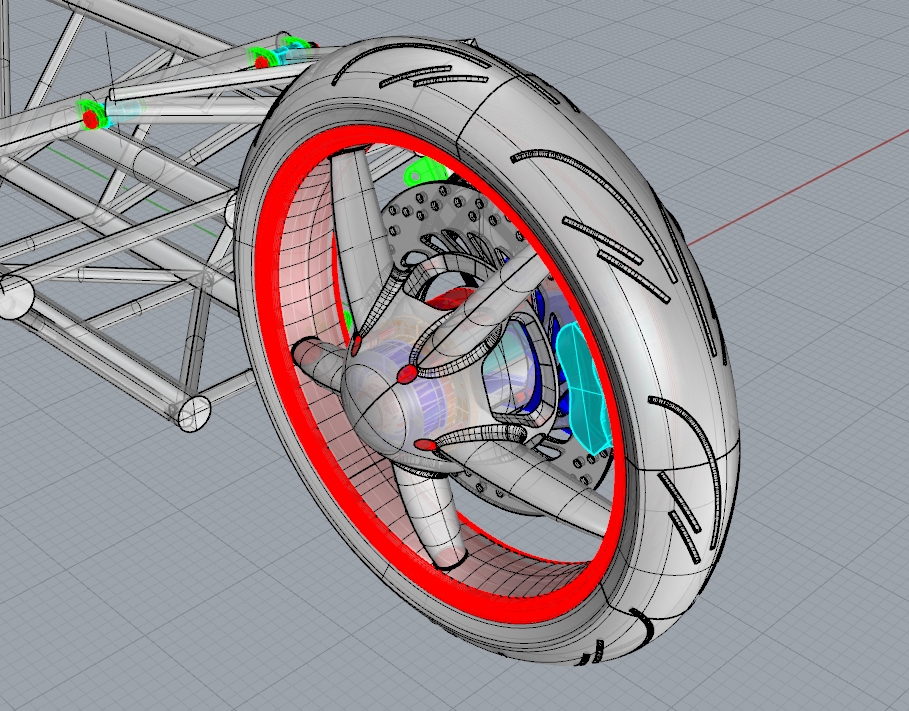

Below some images to peek your interest.
Geplaatst door Hanno Smits op 23:31 |
|
